Power Bar XO CPB-T1-T3 (U.S.)
COMING SOON!

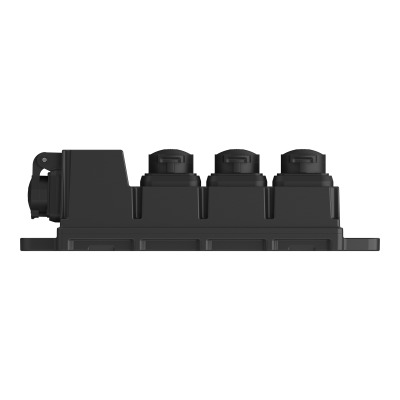

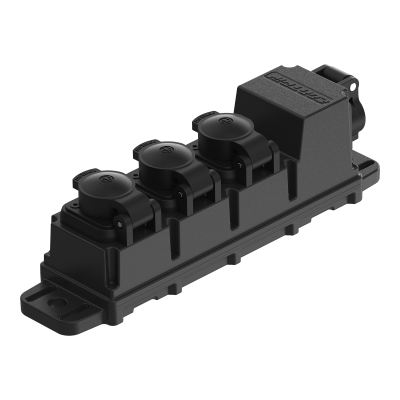

Power Bar Xtreme Outdoor. 1x powerCON TRUE1 IN – 3x powerCON® TRUE1® TOP OUT
The Power Bar is an ultra-compact powerCON TRUE1 distribution box designed for professionals. Its innovative injection-molded housing offers exceptional ingress and mechanical protection, combined with high cost-efficiency. With a rugged, space-saving design, it is the ideal solution for demanding, harsh environments. 1x powerCON® TRUE1® TOP In and 3x powerCON® TRUE1® TOP Out.
Features & Benefits
- Ultra-compact injection-molded power distribution box for
harsh applications - High durability and safety: Impact-resistant (high IK rating), non-conductive, flame-retardant polymer housing (V0)
- Outdoor-ready: IP65/IP67 protection, self-closing caps, UV-resistant material (UL 746C F1 certified), high temperature resistance, high impact strength

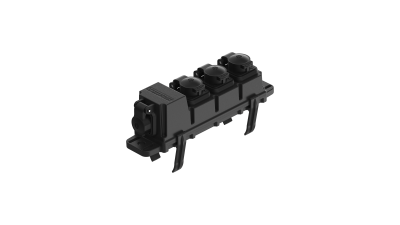

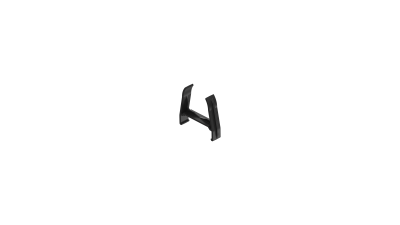

- Flexible mounting options: powerBAR truss clips, screw and Velcro strap mounting holes
- Attractive pricing
Market & Applications
- Markets: Professional video wall / lighting / audio
- Mobile application: Festivals, live events
- Semi-permanent applications: Theaters, studios
Downloads
Technical Information
| Product | |
|---|---|
| Input device | 1x powerCON® TRUE1® TOP with self-closing caps |
| Output device | 3x powerCON® TRUE1® TOP with self-closing caps |
| Electrical | |
|---|---|
| Contact resistance / protection class | Protection class II |
| Dielectric strength | 0.5 kV / mm |
| Rated voltage | 250V AC |
| Rated Current | 20A |
| Number of electrical contacts | 2 + PE |
| Phases | single-phase |
| Mechanical | |
|---|---|
| Lifetime | > 5000 Mating cycles per connector |
| Mechanical impact resistance | IK9 |
| Dimensions | 245 x 60 x 69 mm |
| Conductor cross section | AWG12 |
| Weight | 0.65 kg |
| Mounting options | Truss clip and mounting holes for securing or suspending with screws or Velcro |
| Material | |
|---|---|
| Housing | Polymer composite |
| Color | black |
| Environmental | |
|---|---|
| Standards compatibility | UL94-V0 |
| Standard compliance | ETL Listing according to UL Standard 1640 – Pending |
| Protection class | IP65 / IP67/ NEMA3R |
| Temperature range | -25 °C bis +70°C |
Article Variations
| Article name | Details | Order code |
| CPB-T1-T3 | IN: 1 x powerCON® TRUE1® TOP - OUT: 3 x powerCON® TRUE1® TOP | 1040790 |
